Racing up my Uberti 1873 Trapper 18.5" Lever Action Rifle .357

New guns, old fashioned

Ever since I was a kid, I’ve been fascinated with the Old West.  The idea of rugged people, striking off into untamed wilderness has always resonated with me.

A few years ago, I purchased a stainless Ruger New Vaquero in .357 magnum.  Out of the box, cocking the hammer felt gritty and the trigger wasn’t nearly as crisp as my 1911s.  With the help of forums, Youtube, and my own limited engineering abilities, I slowly began to understand the inner workings of the action, and what needed filing, stoning, or smoothing.  Today, the action is buttery smooth with a trigger pulling just under 3 pounds.  The modern “Peacemaker” satisfied my cowboy fantasies (phrasing!) until I handled a friend’s lever action .22.  Hearing and feeling the metal parts interact as I worked the lever was supremely satisfying, like changing gears in a manual transmission Porsche, or snapping together brand new Lego bricks.  I knew I had to have one.

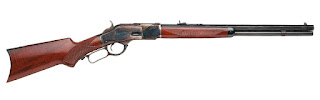

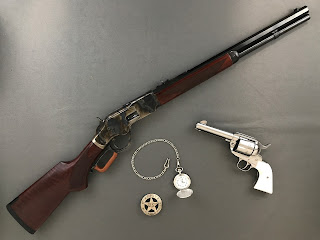

Uberti 1873 Trapper .357 18.5"
I decided on .357 to match my Vaquero, and I wanted a loading gate, but those were the only easy decisions.  I was new to lever actions.  1866, 1873, 1892, 1894?  I spent a few weeks popping in to area gun and pawn shops looking for examples of pistol caliber lever actions to try, but they are rare as hen’s teeth around me.  After exhaustive research I settled on an 1873.  At the end of the day, the 1873 is the definitive “gun that won the west”, and thousands of top SASS shooters swear by them.  Aftermarket support is plentiful as are spare parts.  Unlike modern guns, 19th century designs contain a lot of pieces that will wear out under moderate use.  They were engineered during a time when people actually maintained their equipment, instead of throwing them out like cellphones and TVs.  Knowing that I’d have to put some work into the gun, I decided to buy an 18.5” Uberti Trapper.  I wanted the easy handling of the shorter barrel, but the weight of the octagonal barrel to stabilize the rifle as I work the lever.  The pistol grip stock is heavier than the straight stock, shifting the balance slightly to the rear, and the factory checkering on the grip and forend are a plus.  Its 10 round capacity makes it usable in SASS if I ever get the urge, and go-fast parts are available and well documented.  I also debated on the new Winchester reproductions.  While they’re better made, many of the parts aren’t compatible with the original 1873.

It has that new rifle smell.
I stopped in at a smaller gun store near my work, Poppie’s in Salisbury NC, and placed an order to their distributor.  Four days later I got the call to pick up my rifle.  I pulled the gleaming steel from the box, admired the (faux) color case finish, and worked the lever.  Ugh.  It was gritty, heavy, long, and clunky throughout the stroke. When I measured the trigger at home, it broke at over 7 pounds.  Fortunately, I knew all of this was normal for the Italian copies.  The first thing I did at home was completely disassemble the rifle and thoroughly clean every nook and cranny of leftover machining oil, metal shavings, and other debris.  I also thoroughly cleaned out the magazine tube and ran a boresnake down the barrel.  While my magazine spring was fine, many have reported rusty mag springs because Uberti sometimes doesn’t wash the parts after bluing, leaving bluing salts behind to rust any bare steel.  At long last, I finally got to see the inner workings of the toggle-link action myself.  The idea is simple, but the interactions of all the parts is complex.  Changing one dimension can effect several parts down the line and throw off the timing.  After a few hours, I had a clear picture of how the mechanism worked, lightly lubed everything but the brass carrier with Slip2K, and reassembled the gun.  I then installed a Palo Verde leather lever wrap.  Unfortunately, I broke the provided synthetic lacing trying to get it tight with pliers so I substituted some synthetic waxed sinew from a crafts store.

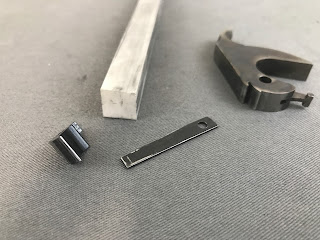

These are spare parts now.
That weekend, I grabbed a box of 158gr .38 special and hit the range.  I loaded a single round and worked the still stiff lever.  The round reluctantly chambered but ejected cleanly after firing.  After a few rounds at 25 yards, I was rewarded with a nice clover leaf.  Satisfied, I loaded up the magazine to full capacity.  The last 2 rounds fought me as I tried to slip them past the loading gate, but I managed to stuff 10 rounds into the tube.  I fought the urge to shoot fast and deliberately worked the lever between shots.  While I could’ve shot more than 50 rounds, I wanted to start preventative maintenance as soon as possible.  The heavy springs and rough internals create a lot of wear so the sooner I addressed them the better.  Nearly every surface, part, and pin had a rough spot or sharp edge that needed to be taken care of.

First, I broke out a 600 grit diamond file and began taking down every burr inside the frame.  I lightly stoned the flats to reduce but not eliminate the tooling marks, careful not to change any dimensions or angles.  I hand/finger sanded a few areas like the bolt channel.  I taped a piece of 800 grit sandpaper to a dowel, wet it down with oil, and chucked it into my cordless drill.  I then very lightly sanded the burrs out of the firing pin extension channel.  I smoothed off the corners of the trigger spring and gave it a light polish with liquid Flitz and a felt drum in my 20 year old Dremel.  Every pin received a light sanding with wet 800 grit sandpaper and hand polishing with more Flitz.  I cleaned up the tool marks on the insides of the cover plates with wet 600 grit paper on a marble tile sample.  Then I broke into my assortment of parts.

Cleaning up the interior with a #600 diamond file
Even before I had the rifle in my hands, I had ordered several go-fast parts.  I chose to purchase aftermarket parts to reduce the time I’d have to spend tuning and to have factory spares.  For the trigger, I swapped in a reduced hammer and lever safety spring.  I cleaned up the sides of the sear with wet 800 grit, and dressed the nose of the sear with an x-fine ceramic stone.  A 10x jewelers loupe and good lighting ensured I didn’t alter the sear geometry.  I used the same stone to square up the hammer hooks.  I also flattened out the curve of the trigger spring to reduce the pull weight and polished the sides and tip where it rests on the sear.  Reassembled and lubed, the trigger broke at a pleasant 3 lbs with zero grittiness while thumbing the hammer.

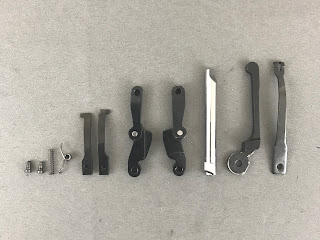

Go-fast goodies.
Sear nose trued and trigger spring polished.

Squaring the hammer hooks

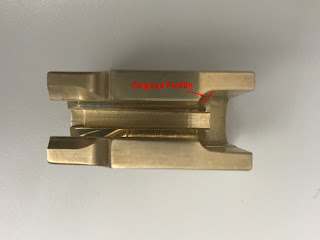

Next I moved on to the brass carrier.  After studying the part, I worked out areas that I could safely lighten.  I used a radiused endmill to cut 0.080” deep pockets in the sides, and cut slots in the lifter tunnel.  I could’ve removed more but I didn't want any modifications to be visible from outside the gun.  I then milled a radius into the forward portion of the carrier in preparation for the C&I short stroke kit.  By the end, I got the 3.9 oz carrier down to 3 oz even.  I decided on a 3rd gen kit because it didn’t require an aluminum carrier.  I’m not out to win any speed records so I don’t need the shortest stroke, and the slippery nature of brass is less likely to get hung up by fowling or wear out as quickly as aluminum.  I finished off the carrier by wet sanding the flats with 800 grit on my marble tile.

Milled carrier - right

Milled carrier - left

Radiused corners for short stroke kit
The short stroke kit took the most time, mainly filing the pad on the lifter to set the timing.  But first I had to address the lobe on the lever.  Uberti cuts the lobe at an angle, so only the outside edge contacts the lever spring.  This wears a groove in the spring and isn’t as efficient or smooth as a wider area.  With my Dremel and a stone, I ground the lobe perpendicular to the lever face, careful to follow the existing contours.  I polished the lobe with a felt wheel and installed the “Whipser” springs.  Unlike the factory flat springs which are stiff enough to use in the suspension on a stagecoach, the Whisper springs use rounded spring steel rods.  Unlike Slix springs, they are captured in a groove under the spring carrier.  Since they are sandwiched between the carrier and frame, they can't accidentally slip out.  They arrived pre-bent and the tips were already polished smooth.

Factory lug not cut square

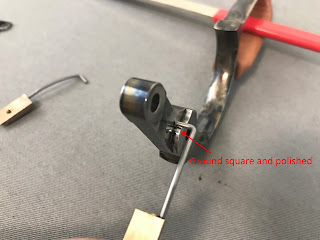

Lug after reshaping and polishing.  Whisper spring leg rests flat.

Whisper Springs

Next I had to bend the lever until the tip of the lever touched the frame just as the carrier bottomed out flush with the receiver.  I mounted the lever in my vise and after a few cycles of bending and testing, got the lever dialed in.  Then came the tedious part.  I had to file the pad on the lifter to set the timing.  This is a critical step.  It ensures the bolt is clear before the carrier raises the next cartridge into position.  There is a very small margin of error.  If you don’t file enough, the rim will snap the thin tab off the bolt.  Too much and the lever will reach its limit of travel before the carrier is fully up.  I knew I’d have to remove at least 3/16” of material so I started with a Dremel, grinding off the pad up to the 1/8” mark.  Then I leveled the surface with a bastard file before switching to a #2 swiss file with a safe edge.  The tricky part is keeping the surface both flat and inline with the pivot pin.  It was slow going, taking nearly 2 hours.  Everytime I wanted to check the fit, I had to reinstall the lifter and lever springs.  Eventually I gouged up the soft lifter/lever screws even with properly fitting gunsmith bits.  Fortunately, I thought ahead, and had a hardened pair ready for when I was done.  When I was satisfied, I polished the flat to provide a square surface for the lever lug to hit, and to look nice since it’s visible from the outside.

Bending the lever

Fitting the timing pad

Looks good

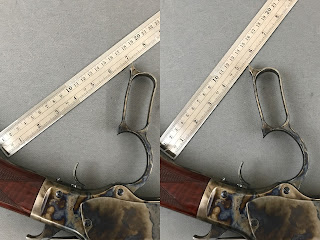

Short throw kit reduced throw by 25%
Reassembled, I worked the action.  The difference was dramatic.  I could work the lever with one finger, and the reduced throw felt like the Henry .22 that inspired me.  There was still some grittyness somewhere in there though, so I went back to work.  I dressed every sharp edge on the bolt, and polished the wearing points.  I replaced the firing pin extension with a lightweight version.  The lighter weight ensures that the now lightened hammer can still transfer enough energy to pop the primer.  The rear where it contacts the hammer is rounded for easier cocking and was polished.  I had trouble getting the retaining piece in though.  As it turns out, the retainer needs to be modified, but no instructions were provided.  Happily, the manufacturer had instructions posted on their website.  I few minutes with a Dremel and file was all it needed.

Smoothing the rough edges on the bolt
Rounded edges reduce cocking effort
Modified retainer
 Next, the King’s loading gate need some tweaking.  I adjusted the arm to reduce the tension slightly, then filed a relief cut in the receiver where the rounds were hanging up when inserted.  I also smoothed a portion of the frame where the gate was snagging and filed a relief cut where the rim of the round would sometimes catch.

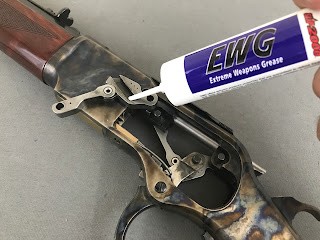

Rotating parts get oil. Sliding parts get grease.

I wrapped everything up by quickly polishing the inside of the toggle tracks and adding a dab of Slip2K grease on the sliding bits.  Now it’s incredibly smooth.  Despite all of the pieces moving about, it feels like it has fewer moving parts than a bolt action, and the front sight moves substantially less when working the lever from my shoulder.

Speaking of shoulders, I knew the crescent stock would have to go as soon as it poked mine.  The curved buttplate is designed to rest against the outside of the shoulder, near the bicep.  The shooter stands upright with an Olympic style grip, bladed to the target, with the strong arm “chicken winged” out to the side.  This is stable and pretty comfortable but not ideal when you want to sling lead.  Ideally, the buttstock rests inside the shoulder pocket close to the pectoral muscle.  This way, as your arm moves to work the lever, the outer shoulder isn’t moving the gun around.  But the bottom point of the aggressive curve digs into the shoulder.  While this is great when butt-striking a cattle rustler in the face, it sucks for shooting at speed.  At first I wanted to buy a carbine stock and add a leather cover, but I’d have to purchase a straight tang to replace the curved one for the pistol grip as well.  I’d also have to buy a matching forend and fit and refinish both.  In the end, I decided to just chop the stock and add a recoil pad.  I decided to cut the stock square with the top of the comb, just far back enough to clear the curve of the buttplate with a bandsaw.  Then I removed the curved potion of the metal buttplate on a scroll saw.  I reinstalled the remaining top corner of the buttplate, and leveled everything out on a belt sander.

Buttstock chopped
For the recoil pad, I chose a ½” thick Pachmayr RP-200. It’s harder rubber than sorbothane pads, but the recoil from a .38 special is a hamster fart.  After chopping the stock, it would be about 4 ½” tall and less than 1.4” wide so I went with the smallest size.  The pad doesn’t have a metal insert which in most cases, is wider than the 1873 stock.  Chopping the stock removed about ¾” from the length, so the ½” Pachmayr pad would get most of that back.  I wanted it shorter so I could add a leather cover down the road.  The top of the comb is narrow and a bit low, so a leather cover would make for a more comfortable cheek weld, and it’s less likely to hang up on my clothes when mounting.  The hole spacing was far enough apart that I had to shorten the top screw to not hit the screw that holds on the remains of the old buttplate.  I also picked up a Wheeler recoil pad jig.  While most people would be happy just covering the stock with a leather wrap and calling it a day, it would bug me if I knew I was hiding a hackjob underneath.  I used the belt sander up to the scribe line, then hand sanded with 220 grit and furniture polish.  Considering I'd never fitted a recoil pad before, I think it turned out pretty well.

Shotgun style buttstock

The only thing I haven’t done is purchase a magazine tube liner or “alignment kit”.  Uberti uses the same tube on their .357 rifles as the .44 and .45LC models.  The oversized tube allows the .38/.357 rounds line up crooked inside the tube which can cause a hitch when feeding the first few rounds.  I haven’t noticed a hitch or any appreciable speed difference from first to last round that isn’t a just a result of the spring pressure in the magazine tube.  However, if my rifle had come from the factory with a rusty spring, I'd have gotten one since alignment tubes include a stainless steel spring and follower.

Now all that was left to do was practice.  I cued up a few westerns on Netflix, and started dry firing.  I picked up a lightened firing pin and spring, and use the factory firing pin for dryfire only.

So what did all this effort get me?  Can I complete a “Nevada Sweep” in under 2.5 seconds with sub .20 splts?  Of course not but maybe someday.  I didn’t build a “race gun” to compete, at least not yet.  But I wanted to have the best example of a lever gun I could while staying somewhat true to the original.  My goal was to build something I could have fun with.  Part of that fun is the build itself.  I did a ton of research, learned a lot, and met some nice people along the way.  I also have a greater appreciation for the people who managed to design and build such a beautiful rifle 150 years ago.  They engineered by oil lamp, not an LCD screen.  They learned by doing, not a Google search.  They built rifles for people who would forge their own path through the frontier.  The fact that the rifle lives on today is a testament to those people and the spirit of the American West.
